RAMCHECK LX DDR4/DDR3 Memory Tester

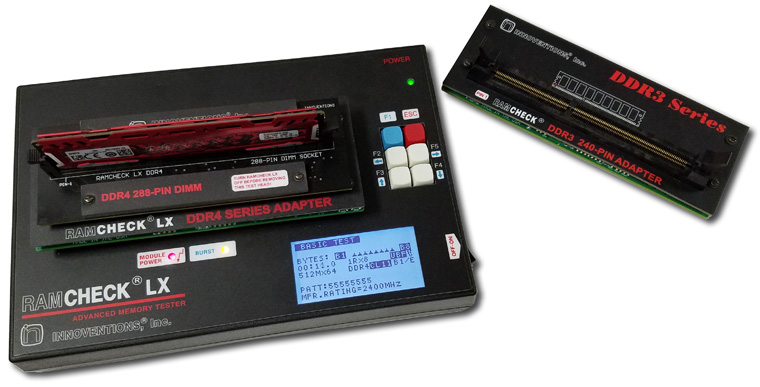

The RAMCHECK LX DDR4/DDR3 memory tester (part
number INN-8686-DDR4+3) is our latest state-of-the-art
tester package for DDR4 and DDR3 DIMMs that comply with JEDEC
standards. RAMCHECK LX DDR4/DDR3 provides
very memory fast and reliable testing that is virtually hassle-free. It includes the RAMCHECK LX base tester, 288-pin DDR4 DIMM adapter and the 240-pin DDR3 DIMM adapter. (This package is also available with the DDR4 DIMM Pro adapter).
RAMCHECK LX
DDR4/DDR3 is compatible with all current RAMCHECK
adapters, including the 184-pin DDR Pro adapter for
testing old DDR memory. Just switch adapters to change from
testing one memory format to another. To
upgrade the RAMCHECK LX DDR4/DDR3 there in the field, just download
the latest firmware upgrade from our website and send it to your RAMCHECK LX via USB cable. A PC
software program is even included, allowing you to
print/log the test results and store/edit/program the
module's SPD information.
RAMCHECK LX DDR4/DDR3 requires no special setup to use. Just turn the RAMCHECK LX tester on, insert a memory module into the adapter's test socket and then press the blue start button. That's it! Tests are very fast.
See how easy it is to use RAMCHECK LX DDR4/DDR3 for yourself:
RAMCHECK LX DDR4/DDR3 is both modular and very user friendly. In fact, RAMCHECK LX DDR4/DDR3 includes features found in testers that cost 10 times more!
 |
RAMCHECK LX DDR4/DDR3 includes a large, vivid, high-contrast display measuring 2.7" x 1.43" (69mm x 36.5mm). Easily viewable at an angle, up to 3-4 feet away. Seen here is the startup screen once the RAMCHECK LX DDR4 is turned on. |
| Basic Test | |
 |
The Basic Test screen shows the size, test time, speed, voltage, structure, test pattern, the module's rank/bank, the CAS Latency and more. This example shows testing a 2GBx72 ECC Registered module. |
 |
RAMCHECK LX displays the manufacturer's official speed rating of the module at the bottom line. The manufacturer specifies the speed rating based on expensive and very complex certifying test equipment. This module is specified for 2400MHz. |
 |
Basic Test screen also shows the time of test and the section of the module currently under test (in this example, B1/1 means Rank1, Bank1). The bottom line may show the speed rating in the PC3-xxxx JEDEC format. The 1866MHz module is PC3-14900. |
 |
Successful test phases conclude with a clear 'Pass' message and with distinguishing sound tones. Important parameters are shown in this screen, followed by a detailed test results summary screen. |
| Test Results | |
 |
Test results summary screens provide a wealth of information after each test phase. All summary screens are also added to the Test Log. |
 |
Test Log collects and retains all intermediary test results while the memory devices undergo all of the test phases. The Test Log remains until a new test is initiated. The Test Log may be uploaded to a PC for printing via the USB interface. You can also save the file. |
 |
Each module is marked with a unique serial number, as shwon in this screen. The SPD chip of this module does not have a temperature sensor. |
 |
In addition to successful wiring tests, this screen shows detailed size information. Each chip is 512Mx8, using 16 rows and 10 columns addressing. |
| Extensive Test | |
 |
The EXTENSIVE Test performs various tests to establish memory quality. |
 |
VOLTAGE CYCLING performs tests under allowable voltage deviations from the recommended VDD setting. |
 |
MODE Test identifies various operational parameters of the device, including different bursts lengths and CAS latency settings. |
 |
VOLTAGE BOUNCE tests data retention during voltage variation between read and write. |
 |
MARCH UP/DOWN reveals adjacent cell interference problems. |
 |
CHIP HEAT MODE tests at elevated operating temperatures. |
 |
FINAL TEST repeats the general Basic Test at the end of the Extensive Test flow. |
 |
Successful Extensive Test concludes with a clear 'Pass' message and with distinguishing sound tones. Important parameters are shown in this screen. |
 |
AUTO LOOP tests memory with endless pattern changes. Great for burn-in testing. |
 |
The RAMCHECK LX provide advanced setup features. Certain timing parameters may be selected graphically as shown here. |
 |
Make changes "on-the-fly" to test parameters with the push of a button. |
| SPD Editor | |
 |
The device's SPD can be conveniently viewed, edited and programmed on the RAMCHECK LX. You can also use our advanced SPD features in the PC RAMCHECK LX communications program. |
During the test, each module's type, size, and structure are automatically detected, and the test flow follows our standard Basic Test, Extensive Test, and Auto-Loop process.
To learn more, please see the following:
The RAMCHECK LX series can also be purchased in the following popular combination packages: RAMCHECK LX DDR4, RAMCHECK LX DDR3, and the RAMCHECK LX DDR3/DDR2.
Dimensions: 9.5"x6.3"x2.5".
Net Weight: @4 lbs.
Part number: INN-8686-DDR4+3
The RAMCHECK LX DDR4/DDR3 is a discounted package which
includes:
· RAMCHECK LX base
tester, p/n INN-8686
· 288-pin DDR4
adapter, p/n INN-8686-18
· 240-pin DDR3
adapter, p/n INN-8668-16
· A universal 240/100VAC switching power supply
· A USB cable
· CD Companion (includes detailed RAMCHECK LX Manual &
PC programs)
(Other discounted RAMCHECK LX packages
containing the DDR2 and DDR1 DIMM adapters
are available).
The RAMCHECK LX manual and addendum are available online.
Please
click here for pricing and further information, or
call INNOVENTIONS at 1 (281) 879-6226. When ordering,
please reference part number INN-8686-DDR4+3.
