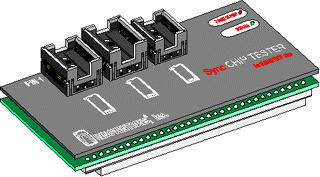

Sync CHIP TESTER®

Sync Chip Tester More advanced memory tester available

Now available for your individual SDRAM TSOP CHIPS is the Sync CHIP TESTER. Your complete solution for testing popular SDRAM CHIPS .

Key Feature The Sync CHIP TESTER has a proprietary 133MHz SDRAM test engine with enough horsepower to fully and quickly test today's 133MHz SDRAM at actual clock speeds.
Key Feature Supports all popular 54/50/44-pin SDRAM TSOP chips including 4Mx4, 16Mx4, 64Mx4, 2Mx8, 8Mx8, 32Mx8, 1Mx16, 4Mx16, 16Mx16 and more.
Key Feature Automatic test provides size, speed, type, and detailed structure information.
Key Feature Comprehensive Page Burst and Bank Interleave tests, with complex test pattern capabilities.
Key Feature Full SDRAM mode tests, including CAS latency of 1, 2, and 3, sequential/interleave addressing mode, variable burst lengths, and single write mode.
Key Feature The Sync CHIP TESTER easily snaps onto the SIMCHECK II or SIMCHECK II se, and is automatically recognized by the tester without the need for user setup.

Our addition to the SIMCHECK® II line provides a state-of-the-art solution for testing SDRAM TSOP chips at an affordable price.

SIMCHECK II and IIse automatically detect the presence of the Sync CHIP TESTER.

The Sync CHIP TESTER bursts complex pattern tests, into and from the tested chip, at a true 133MHz synchronous rate. The automatic test provides the tested chip's size, voltage, frequency, and type. The 133MHz test engine verifies that the tested chip can accept the various mode commands, including CAS latency of 1, 2, and 3, sequential, or interleave type bursts at different lengths, and the single write mode. It further verifies interleaved bank operation.

As we continue to develop the Sync CHIP TESTER program, we plan to add more features and enhance those already implemented. To protect your investment, you can readily upgrade your SIMCHECK II firmware via the Internet at no charge.

Sync CHIP TESTER is supported on the SIMCHECK II and SIMCHECK II se testers. To receive pricing and further information about SIMCHECK II memory testing products, please click here, or call INNOVENTIONS at (281) 879-6226.

Note: This adapter can be used only on SIMCHECK II or SIMCHECK II se. It cannot be supported by our previous generation of SIMCHECK PLUS.

Required SIMCHECK II Firmware Version: 1.42 or higher.
