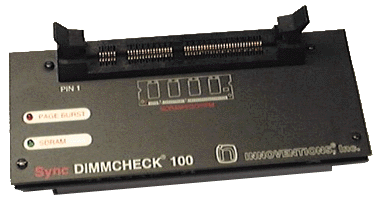

Sync DIMMCHECK^® 100

Your SIMCHECK II memory tester is not complete without Sync DIMMCHECK 100, our affordable 133MHz SDRAM/EDO/FPM SODIMM memory testing solutions.

	The Sync DIMMCHECK 100 adapter has a proprietary 133MHz SDRAM test engine with enough horsepower to fully and quickly test today's 133MHz SDRAM at actual clock speeds.
	Supports all popular 100-pin SDRAM and standard EDO/FPM DRAM SO DIMM modules with configurations of 32, 36, and 40 bits.
	Automatic test provides size, speed, type, and detailed structure information.
	Comprehensive Page Burst and Bank Interleave tests, with complex test pattern capabilities.
	Full SDRAM mode tests, including CAS latency of 1, 2, and 3, sequential/interleave addressing mode, variable burst lengths, and single write mode.
	Support for Serial Presence Detect (SPD) data, includes reading, editing and programming.
	Sync DIMMCHECK 100 easily snaps onto the SIMCHECK II or SIMCHECK II se, and is automatically recognized by the tester without the need for user setup.

Our new addition to the SIMCHECK^® II line provides a state-of-the-art solution for testing SDRAM and standard EDO/FPM DRAM 100-pin SO DIMM modules at an affordable price. The new Sync DIMMCHECK 100's patent-pending 133MHz test engine, as well as the SIMCHECK II line's 1nS technology, combine to achieve true 133MHz testing of your SDRAM modules.

SIMCHECK II and IIse automatically detect the presence of the Sync DIMMCHECK 100. Each memory tester also automatically determines if the tested module is SDRAM or standard DRAM.

In fact, you can test standard DRAM following an SDRAM, or vice versa, without the need of manual settings. Standard DRAM testing is similar to the regular SIMCHECK EDO/FPM test procedure.

The Sync DIMMCHECK 100 bursts complex pattern tests, into and from the tested module, at a true 133MHz synchronous rate. The automatic test provides the tested module's size, voltage, frequency, and type. The 133MHz test engine verifies that the tested module can accept the various mode commands, including CAS latency of 1, 2, and 3, sequential, or interleave type bursts at different lengths, and the single write mode. It further verifies interleaved bank operation.

As we continue to develop the Sync DIMMCHECK 100 test program, we plan to add more features and enhance those already implemented. To protect your investment, you can readily upgrade your SIMCHECK II firmware via the Internet at no charge.

Sync DIMMCHECK 100 is now available and is supported on the SIMCHECK II and SIMCHECK II se memory testers. To receive pricing and further information about SIMCHECK II memory testing products, please click here, or call INNOVENTIONS at (281) 879-6226.

Note: This adapter can be used only on SIMCHECK II or SIMCHECK II se. It cannot be supported by the previous generation of SIMCHECK PLUS. This adapter can be upgraded to the RAMCHECK DIMMCHECK 100 adapter for use with our new RAMCHECK memory tester.

Required SIMCHECK II Firmware Version: 1.55
