RAMCHECK DDR2/DDR1 Memory Tester

(Please note: RAMCHECK is obsolete and has been superseded by the RAMCHECK LX.)

RAMCHECK DDR2/DDR1 (p/n INN-8668-DDR2+1) is a popular combination package for testing and identifying industry standard 240-pin DDR2 and 184-pin DDR1 DIMM memory modules. In less than a minute, RAMCHECK will display the DIMM's size, speed and type, then perform a thorough test of the module. (Support for testing older SDRAM modules is available.)

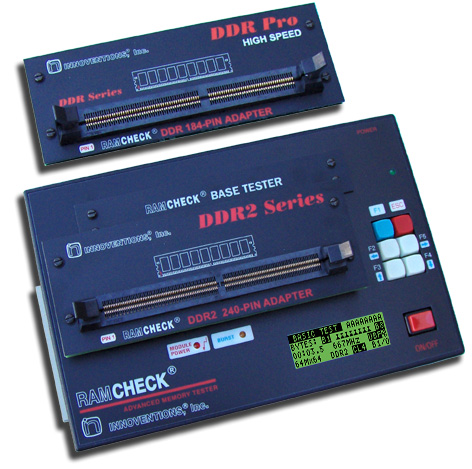

RAMCHECK DDR2 DDR1 tester

Click here for specifications RAMCHECK DDR2/DDR1 is easy to use. The user will not have to read lengthy product documents or memorize complex setup procedures. Just turn the RAMCHECK base unit on, insert the memory module to be tested into the rugged test socket, then press the start button. (Of course, RAMCHECK DDR2/DDR1 allows you to define your own testing parameters if necessary.)

RAMCHECK DDR2/DDR1 is easy to upgrade by downloading the latest firmware updates directly from our website. A powerful PC interface is included, providing you with everything you need to log, print and save your test results. A convenient SPD wizard is even included for viewing and programming SPD information. Click here for complete list of the RAMCHECK DDR2/DDR1 tester's features and capabilities.

During each test, the module's size, type and structure are automatically detected. The initial Basic test takes just seconds. For more exhaustive testing, RAMCHECK DDR2/DDR1 will then perform the Extensive and AutoLoop test phases.

RAMCHECK DDR2/DDR1 includes:

· RAMCHECK* base unit (p/n INN-8668)
· DDR2 240p adapter (p/n INN-8668-12)
· DDR 184p adapter (p/n INN-8668-9)
· Universal 240/100VAC switching power supply
· Serial cable
· Windows PC Interface (Includes a detailed RAMCHECK manual and PC software programs for printing test results and editing SPD files. The PC Interface is not required to use RAMCHECK DDR2/DDR1.)
· Printed manual
· Rugged carrying case
· Limited 1-year warranty
* Does not support older SDRAM, EDO or FPM memory formats.

RAMCHECK DDR2 Coverage
PC2-3200 PC2-4200 PC2-5300
PC2-5400		 PC2-6400**
DDR2-400Mhz DDR2-533Mhz DDR2-667Mhz DDR2-800Mhz
Test at full frequency Test at full frequency Test at full frequency Test at lower frequency

**The RAMCHECK DDR2 adapter can perform DDR2 tests at actual test frequencies up to 667MHz. Modules designed for 800MHz can be functionally tested on the DDR2 adapter but at a reduced frequency. The DDR2 test engine can achieve 800MHz internal diagnostic speeds. Please see the product specifications for futher details.

Please see this page for information about testing DDR2 fully-buffered FB-DIMM devices.		 RAMCHECK DDR2 now available





With RAMCHECK DDR2/DDR1, you can test:
DDR memory 240-pin PC2-3200 DDR2
168-pin SDRAM 240-pin PC2-4200 DDR2
168-pin SDRAM 240-pin PC2-5400 DDR2
168-pin SDRAM 240-pin PC2-6400 DDR2**
168-pin SDRAM 184-pin PC3700 DDR
168-pin SDRAM 184-pin PC3500 DDR
168-pin SDRAM 184-pin PC3200 DDR
168-pin SDRAM 184-pin PC2700 DDR
168-pin SDRAM 184-pin PC2100 DDR
168-pin SDRAM 184-pin PC1600 DDR

Click here to download the one page spec sheet.

To order, please call INNOVENTIONS at 1 (281) 879-6226, or click here to receive a price list. When ordering, please reference part number INN-8668-DDR2+1.
